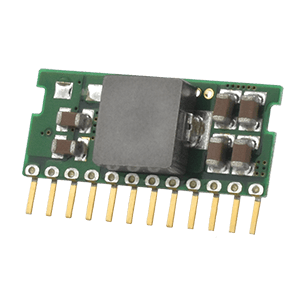

P783F-Q24-S3-S

Name: P783F-Q24-S3-S
Brand: CUI

3 A Output Current, 8~36 Vdc Input, Single Regulated Output, SIP, Non-Isolated, Dc-Dc Converter

Availability: Out of Stock

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the P783F-Q24-S3-S by CUI and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

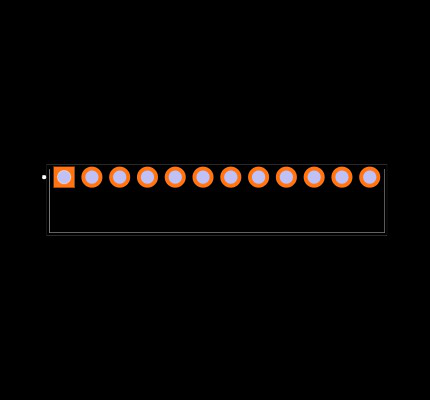

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

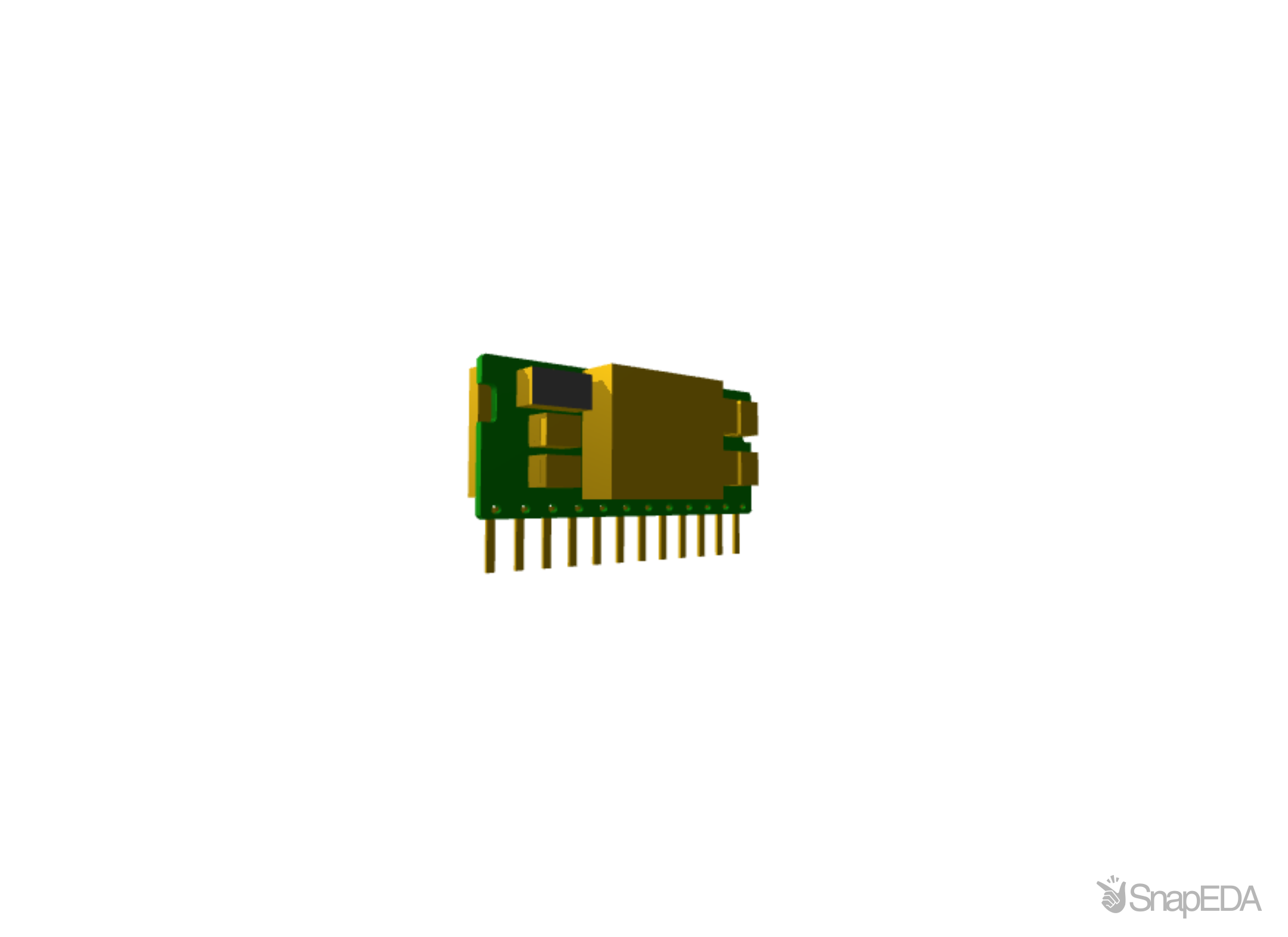

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the P783F-Q24-S3-S

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the P783F-Q24-S3-S

Part Name	P783F-Q24-S3-S
Manufacturer	CUI Inc.
Safety Standards	62368
Number of Outputs	1
Safety Approvals	CE
Operating Temp MAX (°C)	75
RoHS and REACH Link	https://www.cui.com/product/resource/material-compliance/p783f-s-series
Power (W)	10
Input Voltage (Vdc) (V)	8 ~ 36
Operating Temp MIN (°C)	-40
Output Voltage (Vdc) (V)	3.3
Nom. Input Voltage (Vdc) (V)	12, 14, 15, 18, 20, 24, 28, 30, 32, 36, 9
Regulation	Yes
Protections	Short Circuit
Package Type	SIP
Isolation (Vdc)	0
Dimensions LxWxH (mm)	30.6 x 5.8 x 16.6
Output Current (A)	3
Special Features	Extended Temp Range
Operating Temp MAX (With Derating, °C)	85
Operating Temp MIN (With Derating, °C)	-40
Dimensions LxWxH (in)	1.2 x 0.229 x 0.653
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF

We could not find inventory or pricing across major distributors for the P783F-Q24-S3-S by CUI.
